When buyers compare mobile makeup box systems, they often focus on storage, lighting, appearance, or accessories. But in real-world use, the caster system is just as important, because it affects noise, stability, mobility, and long-term durability.
This article explains the engineering behind silent casters, with a focus on the structure, materials, and performance factors that influence quiet movement in professional use.
Why Caster Noise Matters
Noise from caster wheels can disrupt professional spaces such as film sets, backstage dressing rooms, beauty academies, luxury retail counters, and bridal preparation areas.
Common noise sources include:
- Hard wheel materials transmitting vibration.
- Low-quality or single bearings increasing rolling resistance.
- Loose wheel assemblies.
- Dust or debris entering bearings.
- Uneven load distribution.
- Swivel friction.
- Ground impact vibration.
A well-designed caster system addresses these issues through material selection, bearing architecture, suspension control, and sealing design.
Material Engineering

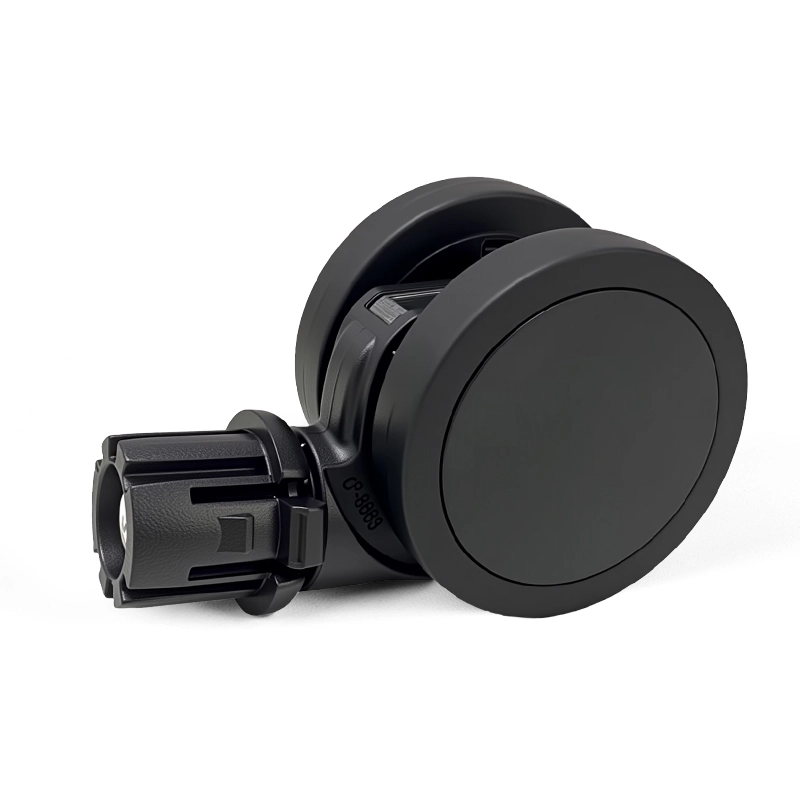

Caption: Soft-touch wheel compound for quieter rolling.
TPE 90A Wheel Compound
TPE 90A is commonly used in silent caster systems because it balances flexibility and durability. It helps absorb vibration, reduce rolling noise, and protect flooring while still supporting repeated movement.
- Lower noise on hard floors.
- Better vibration absorption than rigid plastic.
- Improved floor protection.
- Good wear resistance for professional use.
Material Comparison
| Material | Noise Behavior | Durability | Floor Impact | Typical Use |
|---|---|---|---|---|
| TPE 90A | Low | High | Excellent | Quiet mobility applications |
| PU | Moderate | High | Good | General-purpose caster systems |
| PVC | Higher | Medium | Moderate | Low-cost mobility products |
| Nylon | Higher | High | Poor | Industrial load handling |
Bearing Architecture

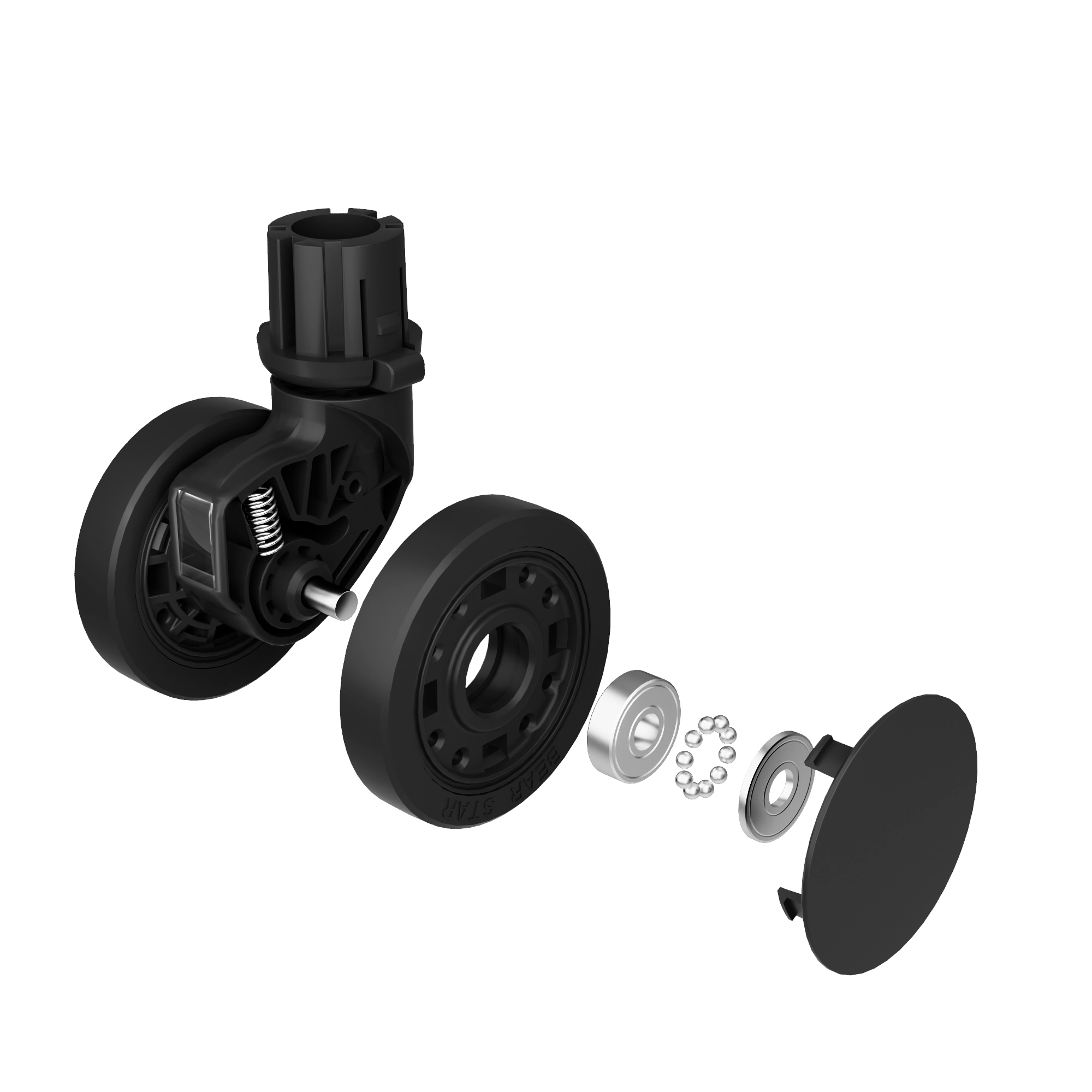

Dual-Bearing Design
Dual bearings improve smoothness by distributing radial and axial loads more evenly. This reduces friction, lowers heat buildup, and helps maintain quieter operation over time.
- Smoother rotation.
- Lower friction.
- Better load distribution.
- Improved long-term stability.
When the bearing chamber is sealed or shielded, contamination is reduced and rotational consistency is easier to maintain.
Why Single Bearings Are Less Stable
Single bearing systems are more sensitive to uneven loading and side forces. In a mobile makeup box, where contents may be unevenly distributed, that sensitivity can lead to more vibration and more noise variation.
Suspension and Shock Control
Spring Suspension
Spring suspension helps absorb shock from thresholds, carpet edges, and uneven flooring. Instead of transferring all the impact directly into the frame, the suspension compresses and releases energy gradually.
- Reduces impact noise.
- Improves rolling comfort.
- Helps protect internal components.
- Supports longer service life.
This matters because caster performance is not only about smooth floors. Real-world movement often includes transitions and minor obstacles.
Sealing and Protection
Fully Enclosed Housing
Dust and debris are major causes of caster wear and noise growth. As contamination enters the bearing chamber, friction increases and motion becomes less consistent.
A fully enclosed housing helps protect the internal structure and preserve quiet operation over time.
- Reduces contamination risk.
- Helps preserve smooth rotation.
- Supports longer service life.
- Maintains quieter operation after repeated use.
Geometry and Load Distribution
Dual-Wheel Configuration
Dual-wheel casters spread load across a wider contact area. That lowers point pressure, improves stability, and reduces rolling resistance compared with a single narrow wheel.
- Better balance during movement.
- Lower stress concentration.
- Improved maneuverability.
- More stable motion under load.
With a swivel mechanism, the caster can rotate 360 degrees while still supporting controlled movement under load.
Total Lock Functionality
Total lock systems secure both swivel motion and wheel rotation. This is useful when the box must stay stationary during use, especially in compact working environments where stability matters.

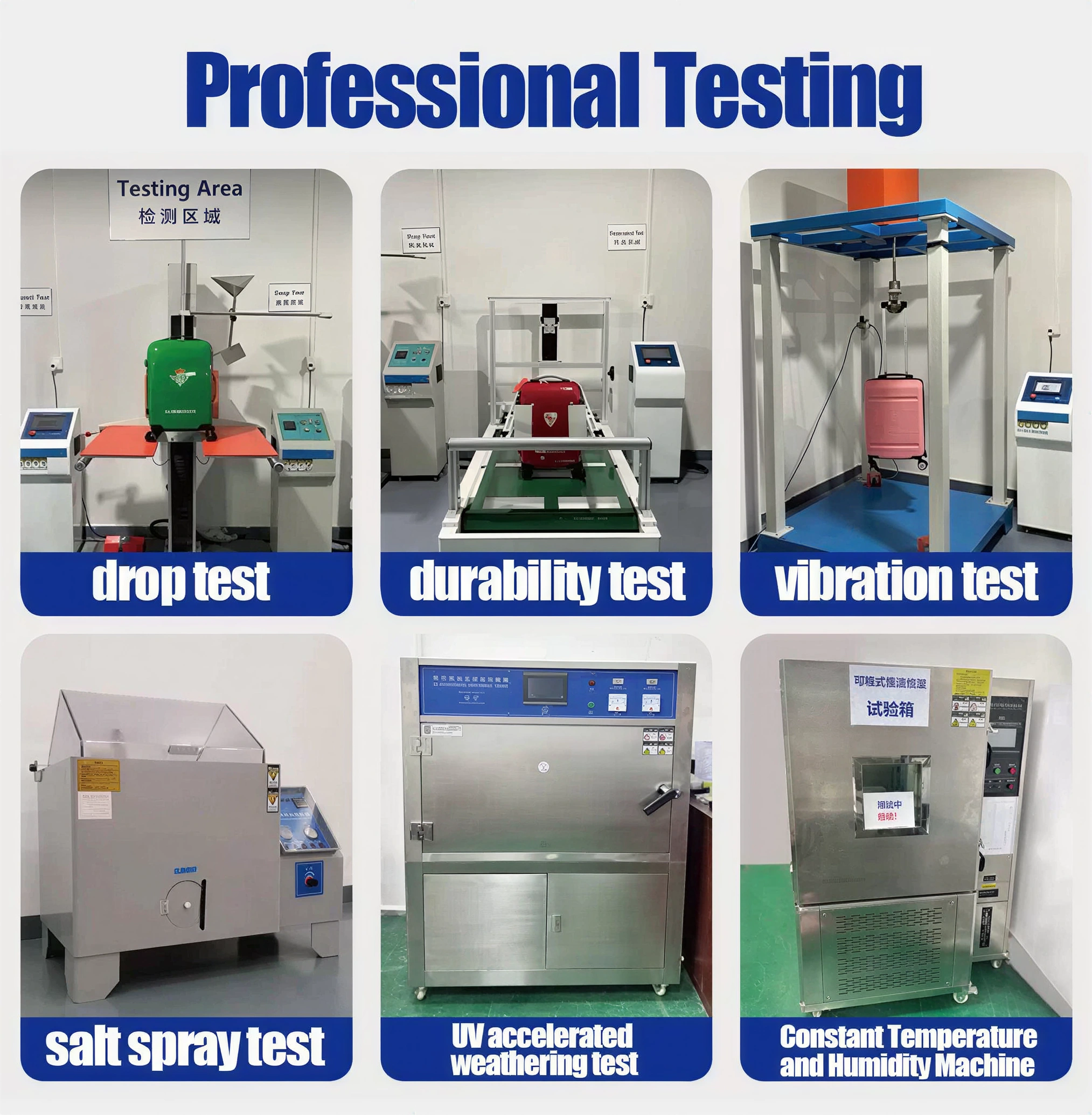

Reference Performance Data
The figures below are engineering reference values measured under controlled internal test conditions.
| Test Item | Result | Test Condition / Source |
|---|---|---|
| Operating Noise Level | Approx. 22 dB | Indoor flat tile, acoustic setup under controlled conditions |
| Static Load Capacity | 45 kg per wheel | Evenly loaded system, internal test |
| Continuous Rolling Test | 30,000 cycles | Flat concrete surface, 2.2 inch wheel, 22°C, 50% RH |
| Bearing Rotation Test | 50,000 revolutions | Sealed dual steel bearings, standard factory lubrication |
| Brake Engagement Test | 5,000 cycles | Total lock system, 22°C, standard load |
| Obstacle Crossing Test | 500 crossings | 1 cm threshold, dual-wheel assembly, factory simulation |
| Swivel Rotation | 360° smooth rotation | Manual rotation test under empty and loaded conditions |
| Shock Absorption Performance | Stable under typical load | Internal spring suspension test |
| Dust Protection | Fully enclosed | Covered bearing structure, internal QA inspection |
For B2B buyers, silent caster engineering affects quality perception, service life, maintenance frequency, and the end-user experience. When evaluating a caster system, it is worth checking the wheel compound, bearing structure, sealing design, load rating, test data, and locking performance, because these factors often matter more than appearance.
FAQ
What makes silent casters quieter than standard casters?
Silent casters use softer wheel materials, better bearing structures, and shock-absorbing design to reduce vibration and rolling noise.
Why is TPE 90A used for caster wheels?
TPE 90A offers a good balance between flexibility, durability, floor protection, and low-noise performance.
What is the benefit of dual bearings?
Dual bearings distribute load more evenly, reduce friction, and help the wheel roll more smoothly and quietly.
Can the caster be customized for different load requirements?
Yes. The wheel size, bearing type, brake system, and mounting structure can be adapted to different load needs.
What is the sample or production lead time?
Sample and production lead time depend on the order quantity, customization level, and tooling requirements.
If you want to see how caster durability and wheel wear are reflected in a real test, read our QB/T 2155-2018 testing article.
Conclusion
Silent caster performance is the result of several engineering choices working together: TPE 90A wheel material, dual-bearing architecture, spring suspension, enclosed housing, dual-wheel geometry, and total lock functionality.
When these elements are designed as a system, the result is quieter movement, reduced vibration, better load control, and more reliable long-term performance.
